In the wind power equipment manufacturing industry, ring gears are critical transmission components. Their machining accuracy directly impacts the operational stability, transmission efficiency, and service life of wind turbines. Wind power ring gears are known for their large dimensions, complex structures, and extremely high precision requirements, making them one of the most challenging components to machine.

To address the demanding requirements of CNC drilling and milling in wind power ring gear production, RITEC MACHINERY high-speed CNC drilling and milling machines deliver a reliable and efficient solution, successfully overcoming long-standing machining challenges in the industry.

I. Core Challenges in Wind Power Ring Gear Machining

1. Large Workpiece Size and High Demands on Clamping and Rigidity

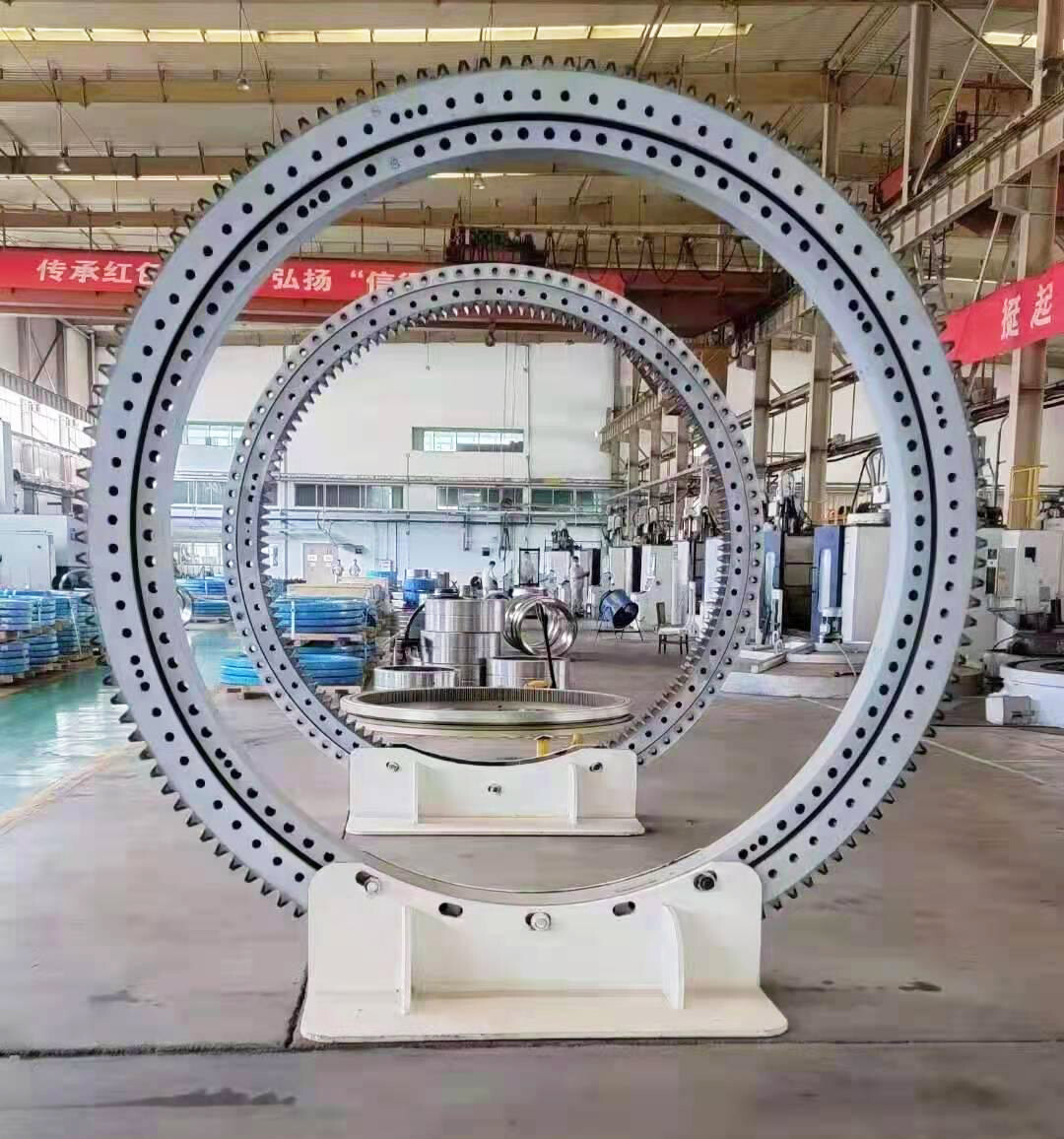

Wind power ring gears typically have diameters ranging from 2 to 6 meters, with some large-scale applications exceeding 8 meters. Individual workpieces may weigh tens of tons, creating major challenges in clamping, positioning, and structural rigidity.

During high-speed machining, insufficient rigidity can lead to vibration and chatter, which negatively affect surface finish and may result in machining defects such as waviness or tool marks.

2. Strict Precision Requirements and Geometric Tolerance Control

As core transmission components, wind power ring gears require extremely tight tolerances for tooth profile accuracy, hole positioning, and end-face flatness. In addition, radial runout and axial runout must be strictly controlled.

These requirements place high demands on the CNC machine’s positioning accuracy, repeatability, and dynamic response, especially when machining large-diameter components.

3. Complex Machining Processes and Difficult Multi-Operation Integration

Wind power ring gears involve multiple machining operations on a single workpiece, including bolt holes, oil holes, keyways, countersinking, and end-face milling. Conventional machine tools often require frequent fixture adjustments and tool changes, which leads to:

• Reduced machining efficiency

• Accumulated positioning errors

• Increased risk of inconsistent machining accuracy

4. Challenging Material Properties and Cutting Conditions

To ensure strength and wear resistance, wind power ring gears are commonly manufactured from high-strength alloy structural steel or low-carbon alloy carburized steel. After heat treatment, these materials exhibit high hardness, making machining more difficult.

Common challenges include rapid tool wear, tool chipping, and dimensional deviation, all of which directly affect product quality and production stability.

II. Advantages of RITEC MACHINERY High-Speed CNC Drilling Machines

To overcome these challenges, RITEC MACHINERY CNC machine tools combine robust structural design, advanced CNC technology, and multi-process integration to deliver dedicated solutions for wind power ring gear machining.

1. High-Rigidity Machine Structure for Large-Scale Machining Stability

RITEC MACHINERY CNC drilling and milling machines feature a one-piece cast-iron bed, treated with stress-relief aging and secondary tempering to minimize deformation and enhance long-term stability.

The worktable can be customized according to workpiece size, while high-precision linear guideways and ball screws significantly improve load-bearing capacity and rigidity. This ensures stable and reliable machining of large wind power ring gears.

2. High-Precision CNC Systems for Consistent Machining Accuracy

Equipped with advanced CNC control systems, RITEC MACHINERY machines support high-speed interpolation, error compensation, and precise motion control, delivering excellent positioning accuracy and repeat positioning accuracy.

For hole machining and contour milling, the machines are fitted with:

• Automatic tool changing systems

• High-precision spindles

• Spindle speeds up to 6000 rpm

• Feed rates up to 8 m/min

These capabilities ensure high-efficiency drilling and milling, precise hole positioning, and superior surface quality.

3. Multi-Process Integration to Maximize Productivity

RITEC MACHINERY CNC drilling and milling machines integrate multiple machining functions, including:

• Drilling

• Milling

• Tapping

• Countersinking


This enables one-stop machining of wind power ring gears. A large-capacity tool magazine supports automatic tool changes, significantly reducing setup time and improving production efficiency.

Through process integration and automated CNC programming, manufacturers can achieve shorter cycle times, reduced labor costs, and more consistent machining quality.

III. Conclusion

RITEC MACHINERY high-speed CNC drilling and milling machines effectively solve the key challenges associated with wind power ring gear machining, providing manufacturers with a high-efficiency, high-precision, and highly stable machining solution.

Looking ahead, RITEC MACHINERY will continue to focus on heavy-duty CNC machining solutions, driving continuous innovation to support the sustainable and high-quality development of the global wind power industry.
