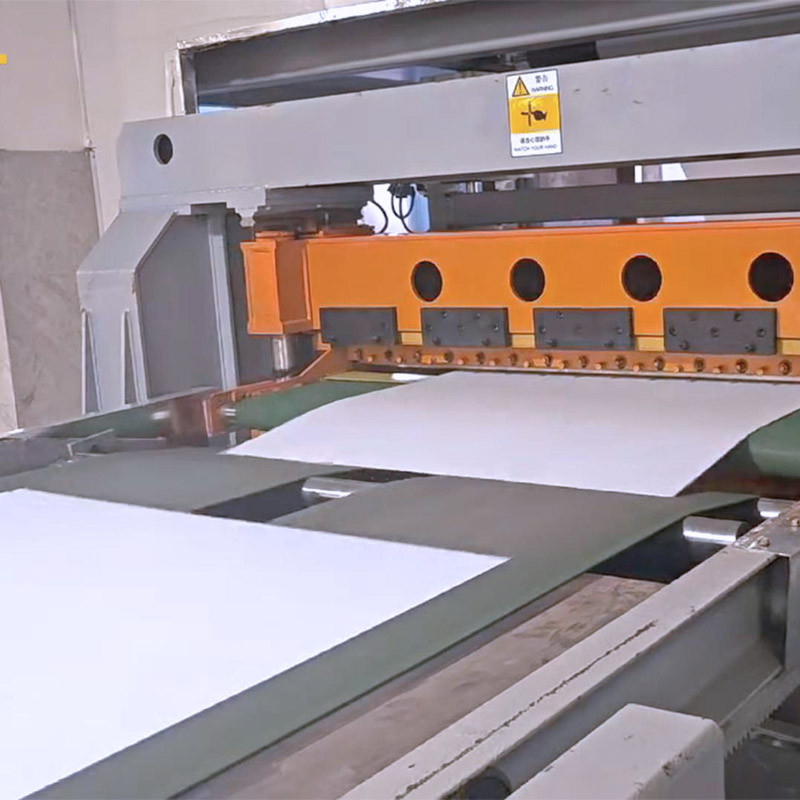

Installing a Cut-to-Length Line mold is a critical step in ensuring accurate cutting and long-lasting performance for your metal shearing production line. A properly installed mold will improve production efficiency, reduce downtime, and minimize material waste.

In this guide, we provide a detailed step-by-step installation process for both the punching die and the cutting die, along with important tips to ensure safety and precision.

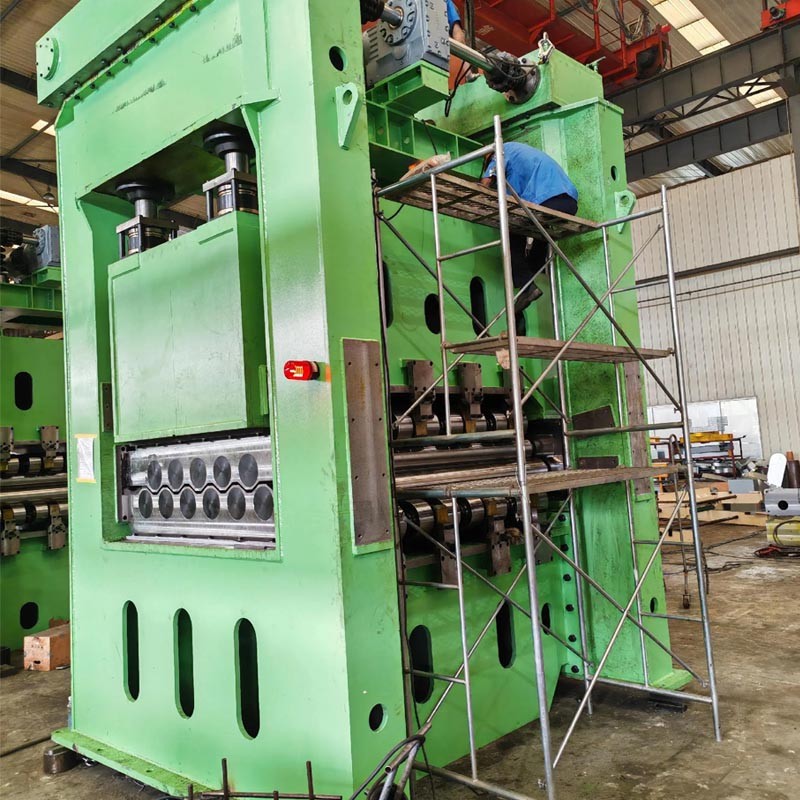

1. Prepare the Lower Die Guide Columns

• Position the four guide columns of the lower die (already ground by the horizontal shearing machine) in their original matching positions.

• Install the unloading plate.

• Adjust the lead screw to its lowest position.

• Insert the lead screw through the four holes in the lower die.

2. Position and Secure the Lower Die

• Move the lower die so it rests against the two rear supports.

• Tighten the two fixing screws on the left and right sides.

• Install two nuts and washers on each of the four lead screws.

3. Install the Punching Die (Upper Die)

• One person gently lifts the punching die above the lead screws and aligns it with the screw holes.

• Two people:

  • Use one hand to lift the upper die.

  • Use the other hand to raise the ball spring on the die frame guide pillar to the highest position.

• Align the upper die guide sleeve with the lower die ball guide pillar.

• Lower the upper die slowly and evenly.

4. Install the Cutting Die Upper Part

• Follow the same steps as for the punching die.

• Adjust the lower end of the cutting die to fully align with the cutting edge of the lower die.

5. Tighten and Adjust the Mold

• Tighten the four nuts on the mold.

• Adjust the upper die to its highest position.

6. Test the Punching Die

• Slightly move the punching die until it can punch through smoothly.

• Place a piece of test material under the unloading plate.

• Press the punching button to confirm proper function.

7. Final Locking

• Tighten the lower fixed nuts on the upper die screw rod to complete the installation.

Installation Tips

• Always have multiple operators during installation to avoid die misalignment.

• Ensure all bolts and nuts are fully tightened before test operation.

• Regularly check and lubricate guide columns and sleeves to prevent wear.

Conclusion

A properly installed Cut-to-Length Line mold ensures precision cutting, reduces operational issues, and extends the service life of the mold. By following this step-by-step guide, you can achieve better cutting accuracy and higher production efficiency.
