Usage

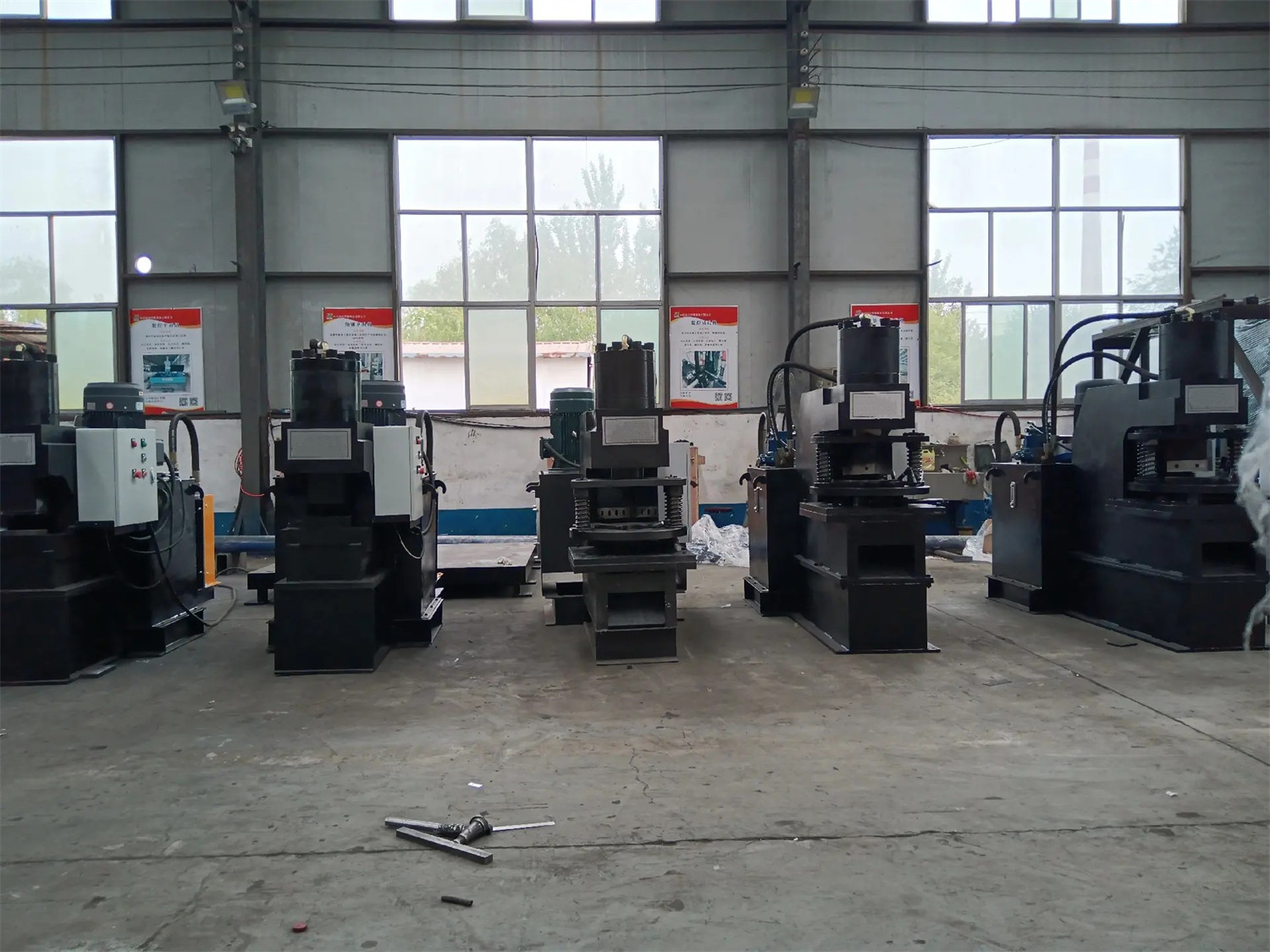

RTJ200 Hydraulic Angle Notching Machine is mainly used to cut the corners of angle steel.


angle notching machine (1).jpg


Features

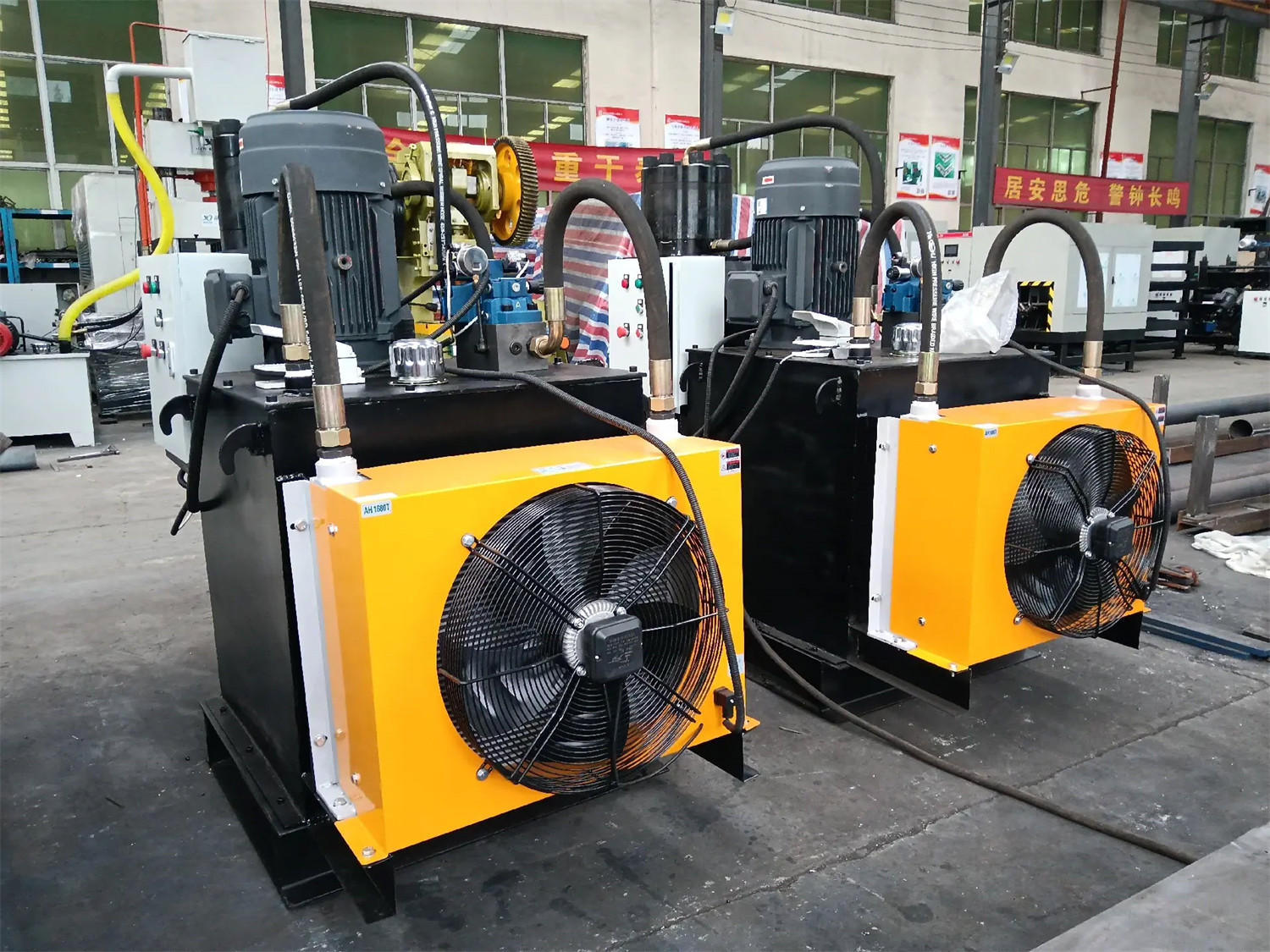

1. The equipment has an independent hydraulic power mechanism and electrical control system. The hydraulic system adopts water circulation cooling.

2. Hydraulic shearing is used, with stable performance and fast shearing speed.

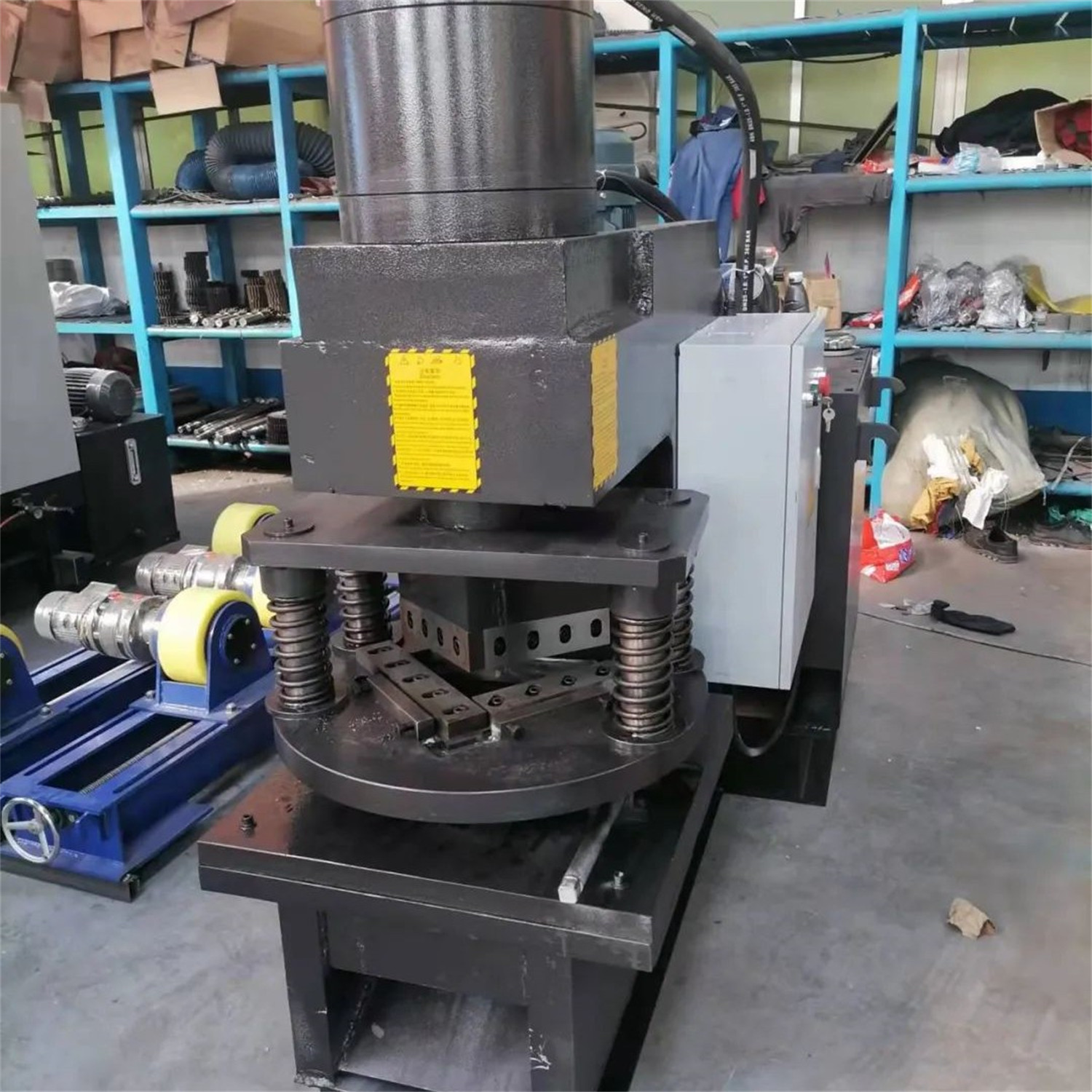

3. The angle-cutting mold of this equipment is a right-angled double-edge, rotary multi-directional angle-cutting mold. To change the required cutting angle of the angle steel, you only need to adjust the rotary mold base, while the angle steel does not need to rotate, so its angle cutting The operation occupies a small area, the angle cutting error is small, and the production efficiency is high.

4. The equipment is equipped with a foot switch, which is simple and convenient to operate.

5. The equipment is simple and convenient to operate, safe and reliable in performance, and has high production efficiency.


Parameter



No.ModelGQJ200
1Cylinder Pressure (KN)1800
2Cutting Range (mm)L40×3 to L200×20
3Cylinder Stroke (min)80
4Stroke Times (min-1)20
5Power (KW)15
6Die Rotation Angle180°
7Die Dimensions (mm)900×900×600
8Oil Tank Capacity (L)500
9Weight (T)Approx. 6
10Dimensions (mm)2500×1200×2000


Workpiece


RTJ200 Workpiece (4).jpg

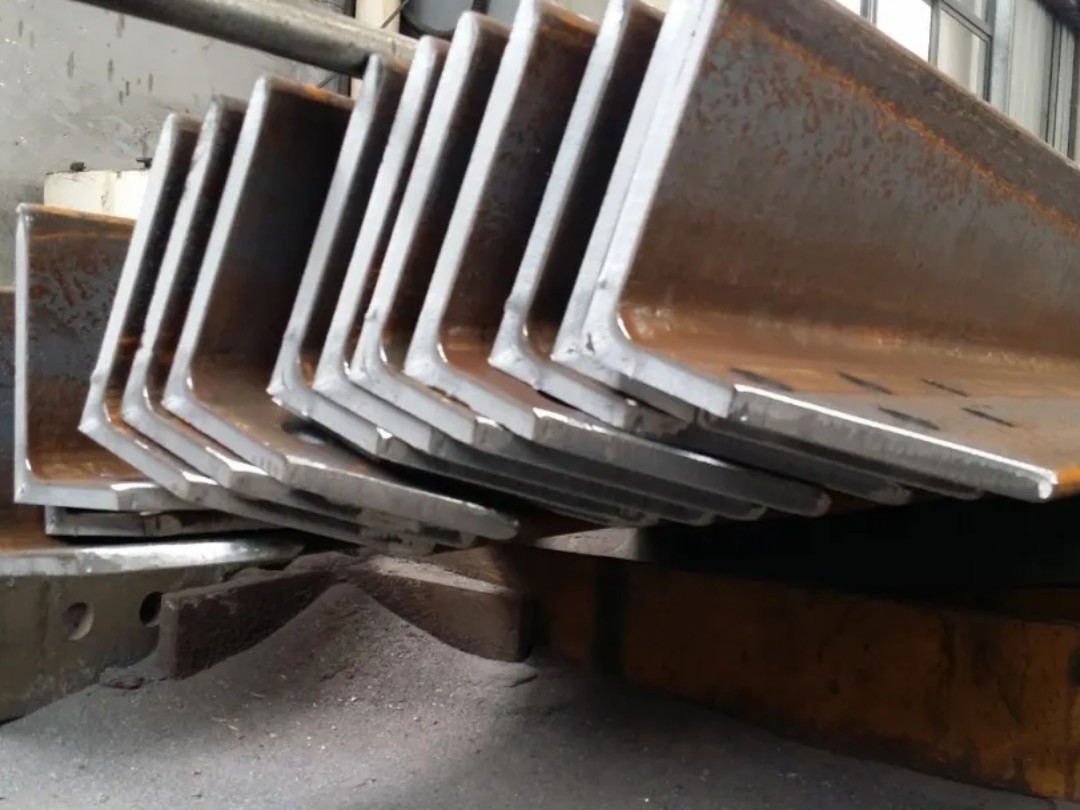

RTJ200 Workpiece (2).jpg

RTJ200 Workpiece (2).jpg

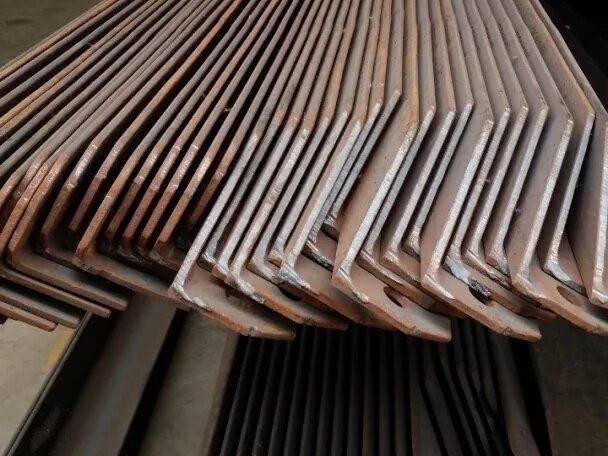

RTJ200 Workpiece (3).jpg


Many times you may have some questions about the CNC Hydraulic Angle Notching Machine that we didn't cover, that's no problem! lf you would like more information or ask a question, please contact us with your detailed requirements. Our sales manager will get back to you.
