Head Mobile CNC Surface Grinder Machine
Min.vertical feed:5 um
Equal thickness of the workpiece: 0.008/300mm
Surface roughness of the workpiece: Ra0.63
Email：cncmachinery@costergroup.cn
Tel：+86-531-81907399
WhatsApp：+86 18563750537
Inquiry Now →
Catalog

Technical Parameters of CNC Surface Grinder


unitM7130Y
M7132M7132*16M7132*20M7140YM7150YM7160Y
Size of working tablemm300*1000320*1000320*1600320*2000400*1000
Max.size of workpiece to be groundmm300x1000x400320x1000x400320x1000x400320x1000x400320x1000x400320x1000x400320x1000x400
Table longitudirusl traved (Hydraulic)mm200~1100200~1700200~2100200~1100

Max Allonwsble weight of workpiece


 		kg500
800998624800
Wheel sizemmφ400x50xφ203
Electrical equipment total capacityKVA14

 Grinding wheel motor

 Rotationsl speed

kVy

r/rmin

7.5
1440

Equdl thickness of the workpiecemm300:0.005300:0.008
Surlace roughness of the workpieceμmRa0.63

cnc surface grinder dressing.jpg

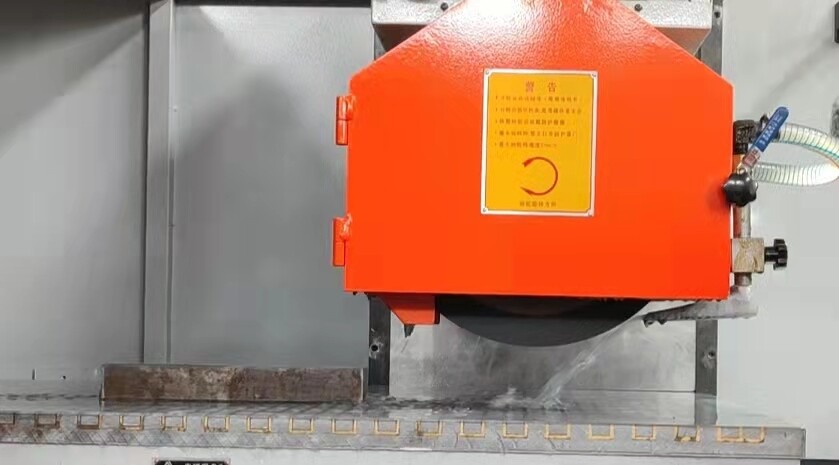

Dressing
Automatie dressing of collision cylinder positioning grinding wheel.

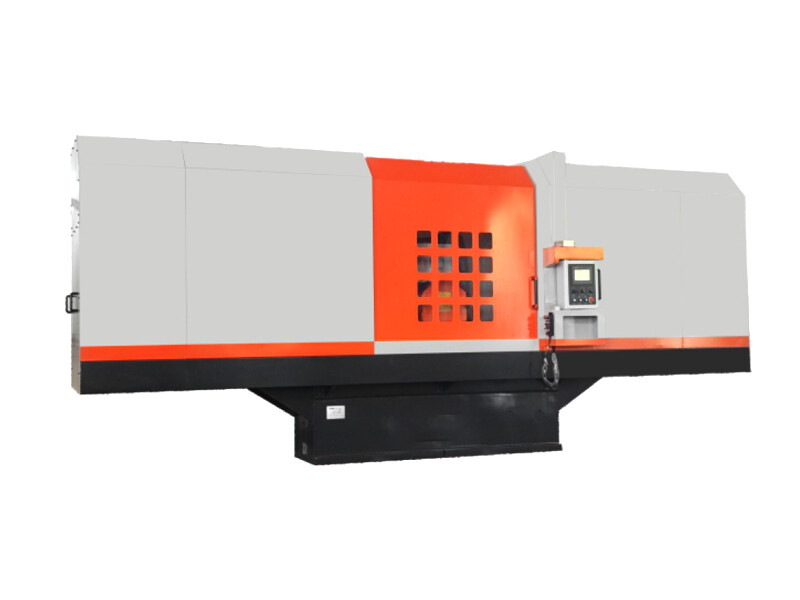

Can be equipped with fully enclosed safety hood.

fully enclosed cnc surface grinder.jpg

cnc surface grinder spindle.jpg

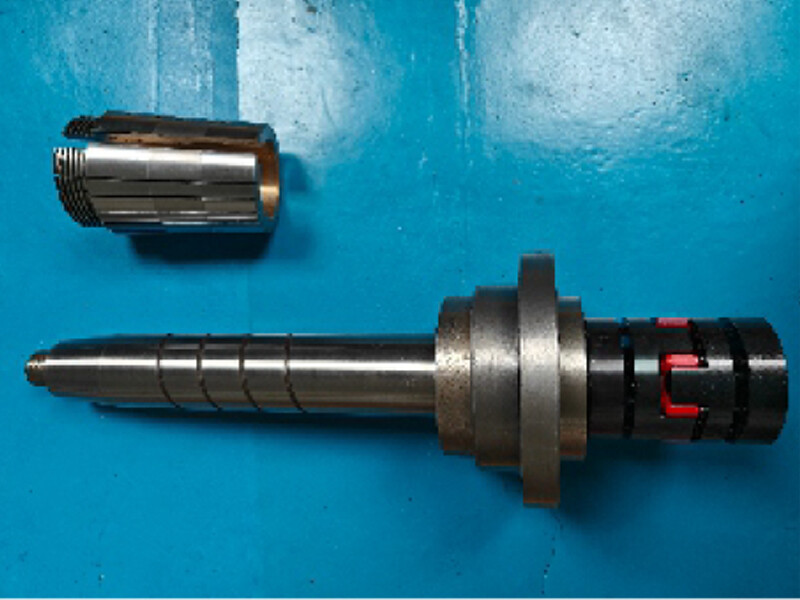

Simple structure, convenient manufacturing, processing,and disassembly; High carrying capacity; Good impact resistance and vibration absorption performance.

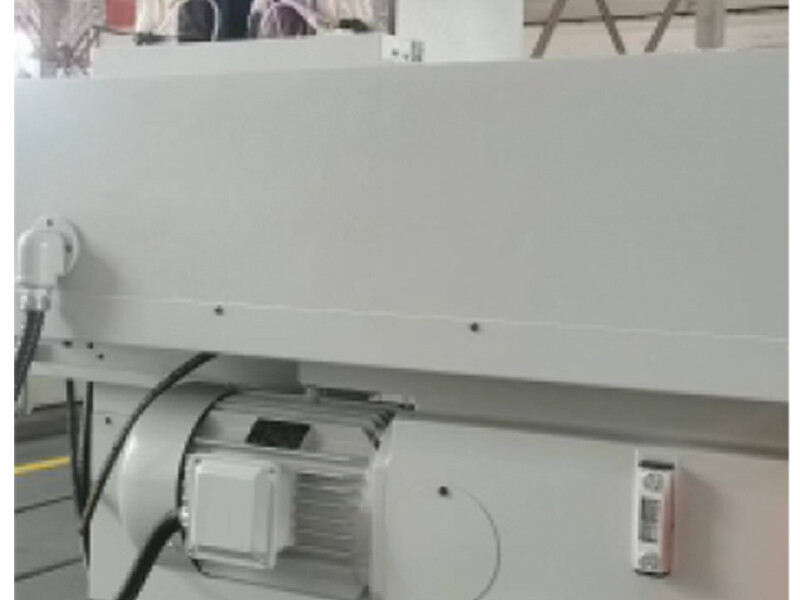

Precision scraping of vertical rectangular sliding guide rail.

cnc surface grinder column.jpg

cnc surface grinder buttons.jpg
