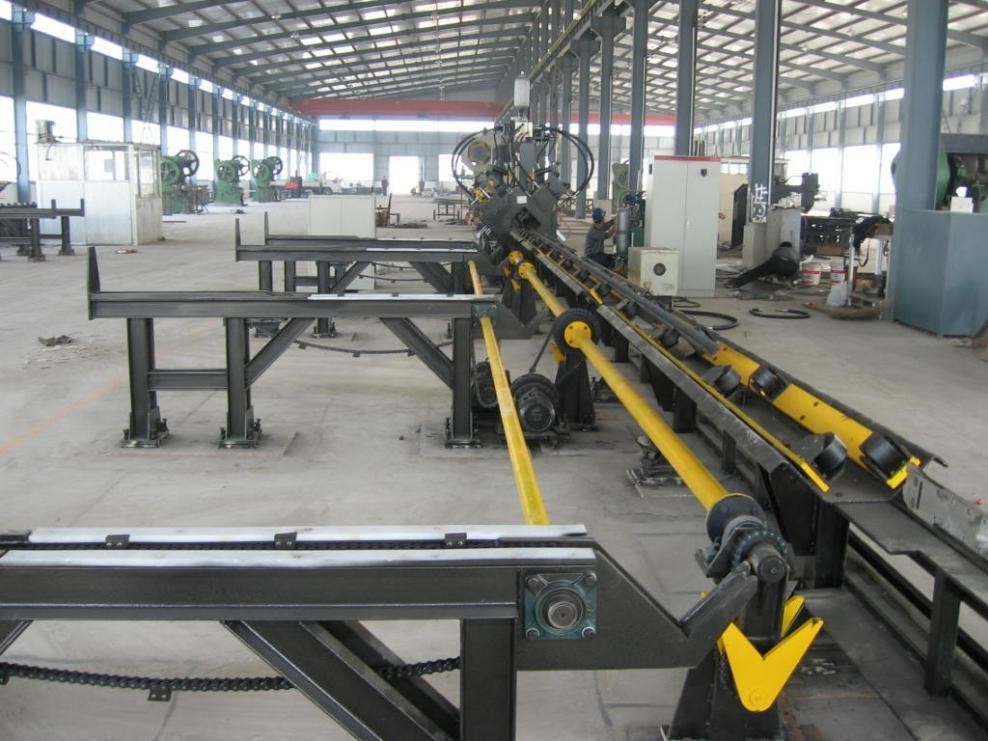

The CNC Angle Steel Punching Line is a special equipment for punching, typing and cutting of angle steel for electric power towers. It is suitable for various types of angle steel. It is fully automatic loading and unloading, saving time and effort, high efficiency and accurate precision. It is suitable for tower production and construction. The processing technology of angle steel components in the industry.

Detailed explanation of CNC Angle Steel Punching Line working process:

1.  Feeding. The operator lifts the workpiece to the platform behind the horizontal material table. This is the workpiece placement area, waiting for equipment loading and processing.

2. Lateral feeding. The CNC system sends instructions, and the rotation of the material table's reduction motor drives the material table sprocket to rotate. The toggle workpiece installed on the chain moves laterally on the wear-resistant nylon plate. Finally, it falls into the V-shaped groove with the apex downward and waits for flipping.

3. Flip to serve. The CNC system sends instructions, and the flip reduction motor drives the long axis of the flip frame to rotate. The flip chain drives the loading claw to rotate around the axis. During rotation, the V-shaped opening of the loading claw remains upward, and the workpiece on the V-shaped surface of the feeding table is lifted up. Rotate and place on the feed channel.

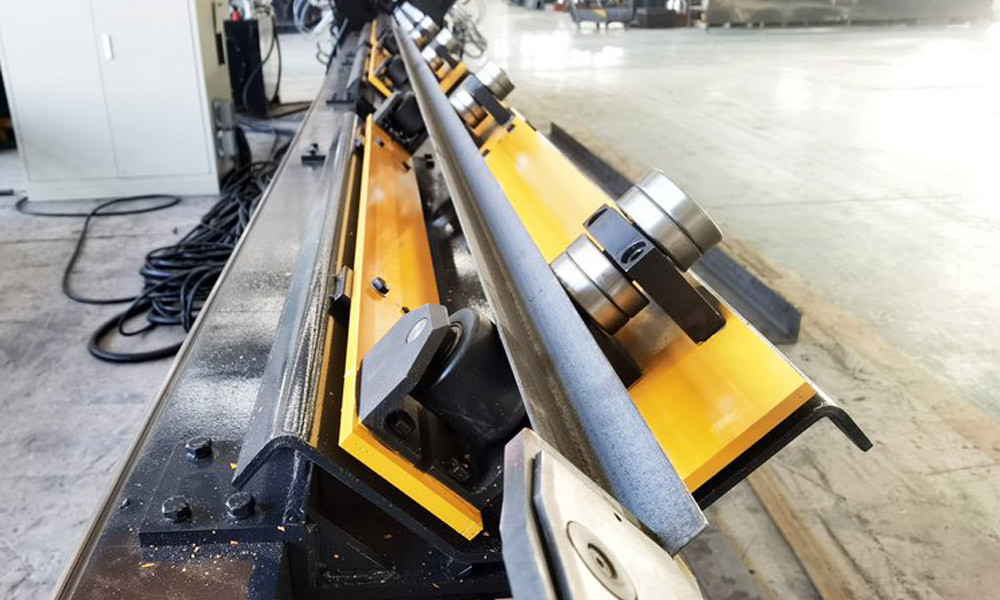

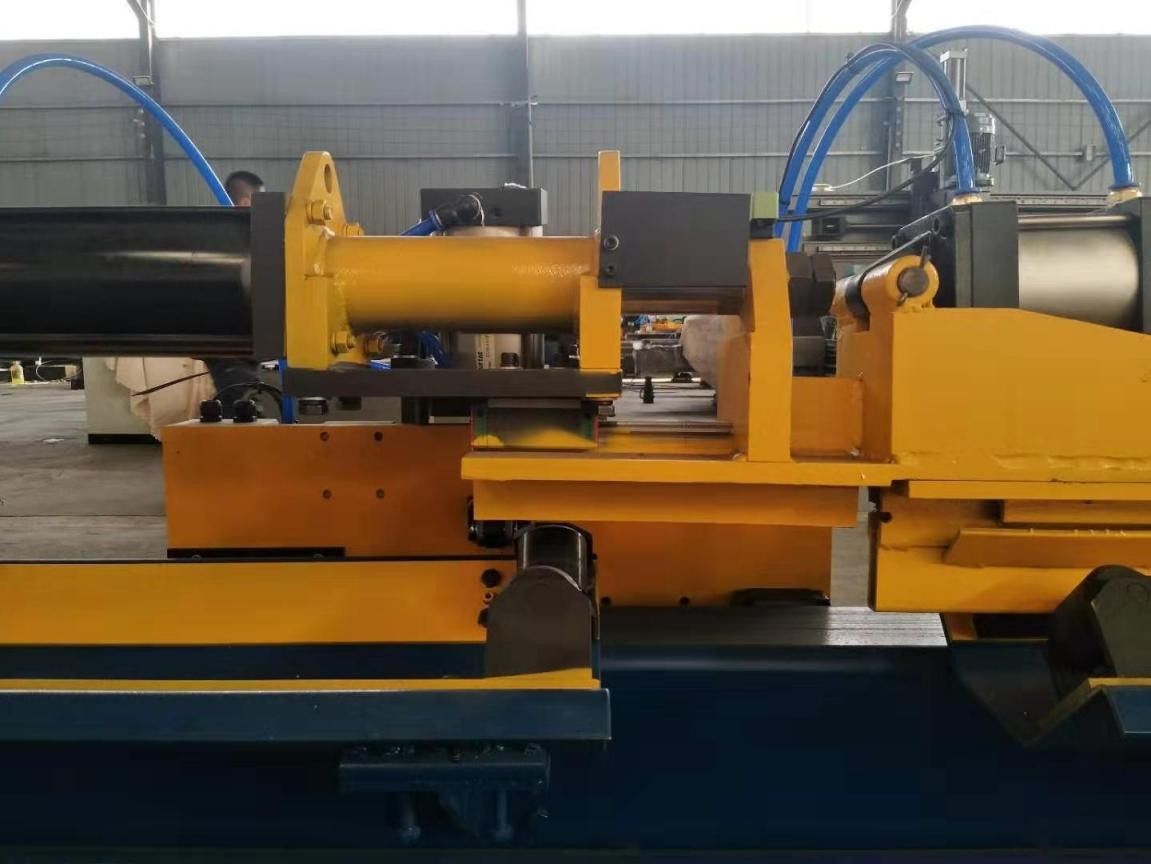

4. CNC feeding. After the workpiece is placed on the feeding path, the jaws at the front end of the CNC trolley clamp rod clamp the workpiece under the action of the cylinder. The CNC trolley is controlled by the CNC system to promote CNC feeding of the workpiece.

5. Marking. The workpiece is sent to the set position, the marking machine body drops to the marking position, and the character box is pushed out of the designated character box to the marking position under the control of the system. The typing cylinder presses down the indenter to imprint the characters on the workpiece.

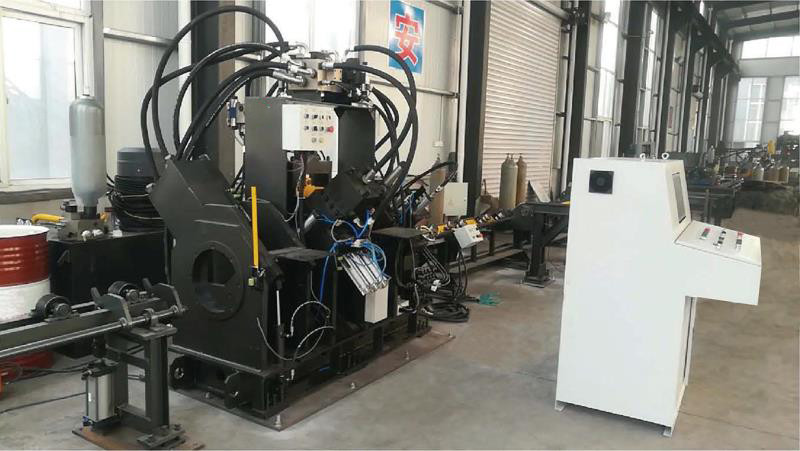

6. Punching. The punching host has two punching units, arranged on both sides, with two die positions on each side. Each mold position has a set of mold base devices, which are equipped with punch rods, punches and dies. Each mold base device should be installed before processing. The CNC system sends instructions, the pressing oil cylinder moves, and the pressing mechanism presses the workpiece. The selected mold position is pushed by the cylinder to the top of the punch rod, and the punching master cylinder presses down to punch the hole of the mold position. The rest are not Since the selected mold position does not have a spacer, the empty row of the punch rod cannot punch holes.

7. Shearing. After the specified hole is punched on a workpiece according to the program, the CNC car pushes the workpiece to the designated position, the shear cylinder works, the upper knife moves downward to cut the workpiece, and a finished product is completed.

8. Discharge. The CNC system sends instructions, the cylinder of the sorting channel works, lifts one side of the material channel, and the workpiece is finished unloading.
