Slitting is an essential metal fabrication technique that cuts wide metal coils into narrower strips or trims edges. This post outlines the slitting process, its key components, and operation modes.

Components of Slitting

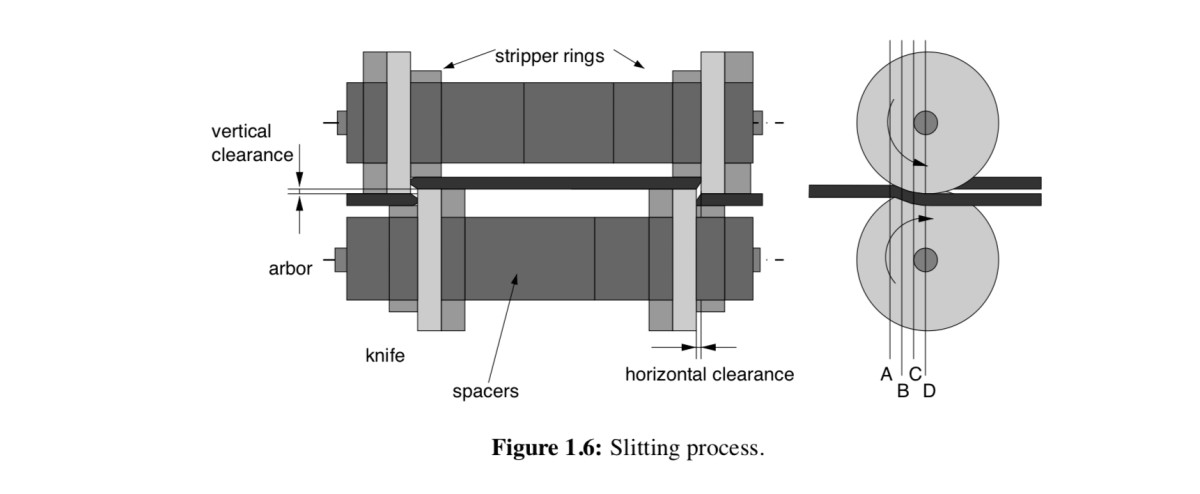

Slitting involves circular knives mounted on arbors with spacers, which dictate the cut's width and clearance. Rubber stripper rings eject and support the metal strip during slitting, integrating shearing and bending deformations.

Slitting Line Essentials

Uncoiler: Unwinds and feeds metal into the slitters.

Slitter: Cuts the metal using knives; the core component.

Recoiler: Rewinds the cut metal into coils.

These units are driven by synchronized motors ensuring smooth operations.

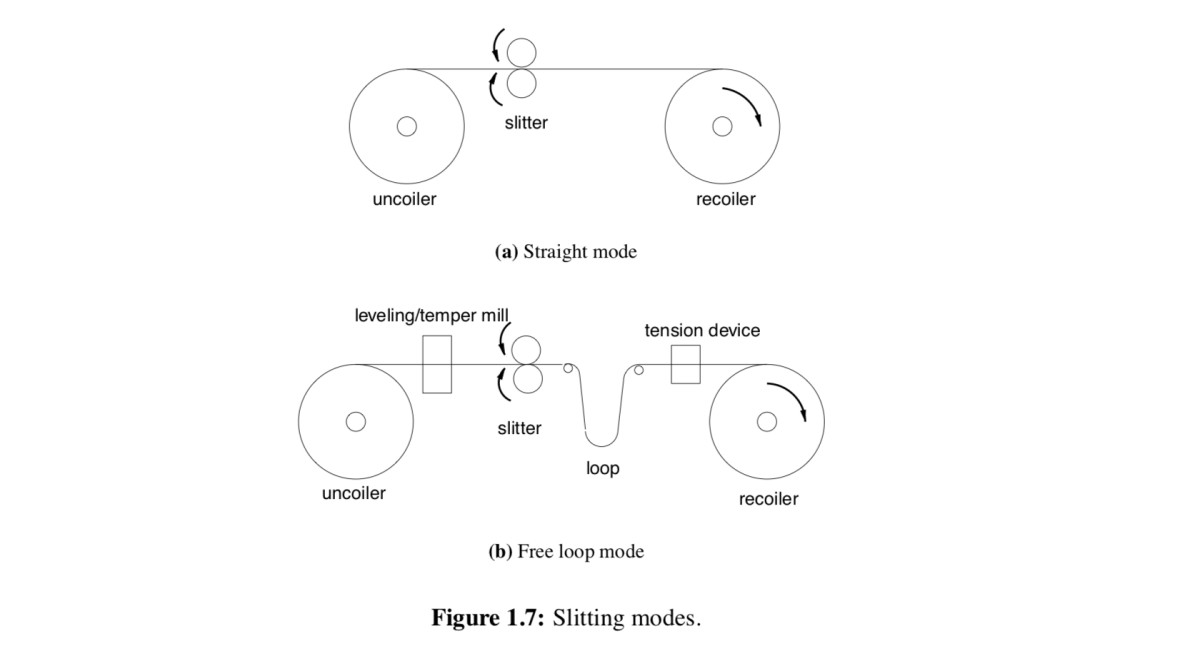

Slitting Modes

Straight Mode: The material is pulled through the slitters by the recoiler. Ideal for thin sheets, improving edge quality.

Free Loop Mode: Allows the metal to loop between the slitter and recoiler, using a tensioning device for better coil winding.

Quality Adjustments

Adjustments may be needed to correct material defects or internal stresses with a leveller or temper mill to improve the incoming coil, enhancing the final product's quality.

Challenges and Innovations

Slitting is influenced by material properties and tool setup, often requiring empirical adjustments through trial and error. Advanced modeling, like finite element analysis, is proposed to minimize these trials, improving efficiency and quality.

Conclusion

Effective slitting ensures high-quality metal fabrication. Understanding its mechanics and adjustments helps manufacturers enhance productivity and product quality.
