Every day in the CNC machine workshop, it is inevitable that you will often deal with the slitting line. It is very necessary to learn the basic knowledge of the slitting machine.

The slitting machine is used in industries such as transformers, transformers, motors, electrical appliances, and sheet products to cut coils into strips of different widths, and then rewind the strips into small rolls for cross-cutting or automatic punching in the next process. Indispensable special equipment for cutting.

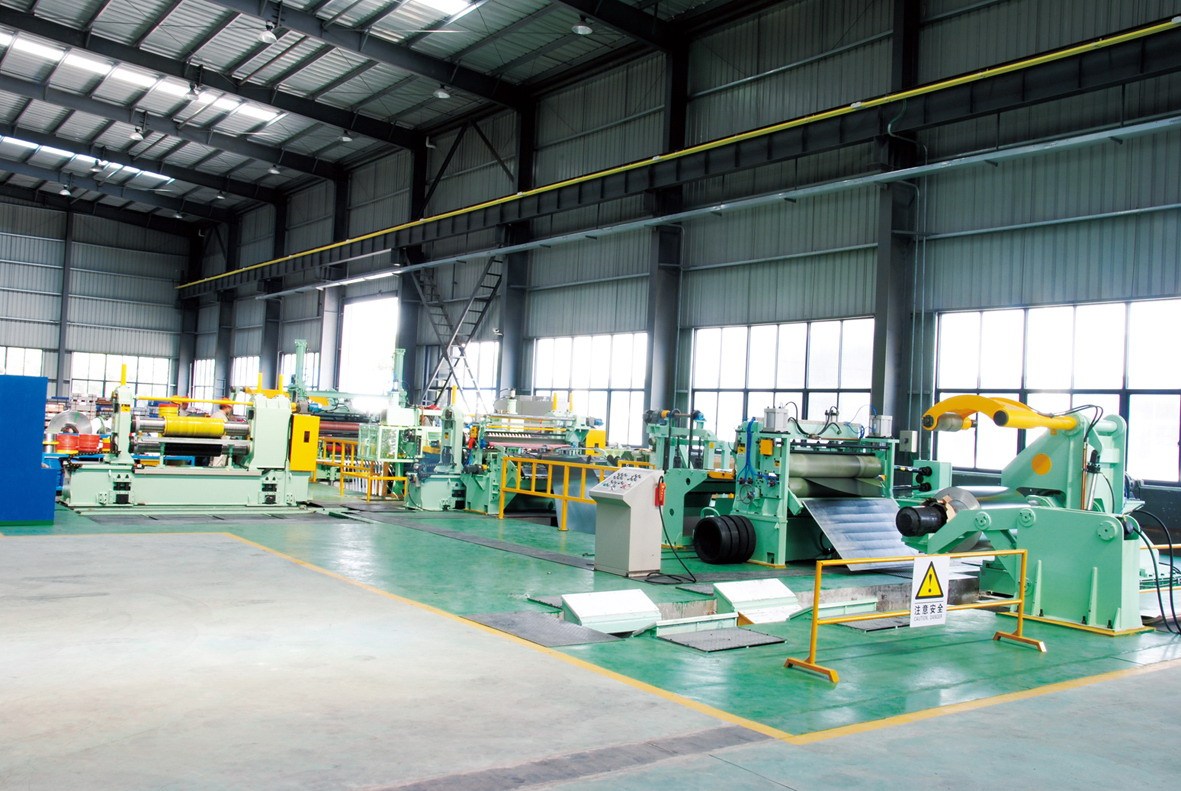

The slitting line is a continuous production line composed of uncoiler parts, circular shear parts, material storage pits, slitting tension control mechanism parts, winder parts, electrical control cabinets, etc. It can continuously cut coil materials, and can cut coils of different widths. The strips are rolled up under tension and the production efficiency is high. The entire line is operated by two people, with simple structure and easy adjustment, operation and maintenance.

The main technical parameters of the slitting machine are:

     1) Shearing width: 680/1250/1400/1700/2000mm

     2) Maximum thickness of sheared material: 0.1～0.8mm, 0.5～3mm

     3) Maximum outer diameter of coil: φ1800mm

     4) Rewinding inner diameter: φ508mm

     5) Maximum weight of coil: 5/12.8/2mt

     6) Shearing line speed: 70/120/160/200m/min

     7) Equipment power: 167kW

     8) Uncoiling expansion and contraction range: 380-450mm

     9) S degree error: ≤0.05mm

     10) Shearing edge burr: ≤0.02mm

     11) Coil material: tinplate, silicon steel sheet, aluminum strip, copper, stainless steel plate, galvanized plate and other coil materials are cut into strips.

This kind of CNC Slitting Line is designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
